HL5239

HL5239
HL5239B
HL5239C
HL5239D

Patent No.:

  • US 7,023,221 B1 (U.S.A.)
  • I 259908 (R.O.C.)
  • EP 1791260 B1 (EUROPE)
  • ZL 200510080231.9 (CHINA)
  • 特許第4365817号 (JAPAN)

HL5239 GENERAL DESCRIPTION

HL5239 is a multiple point object proximity sensor IC, which can be used to determine position of an object in a keypad matrix, and can be called object position detector.

The sensors of the object position detector are composed of multiple arrays of sensor plates. The key matrix is formed by 7 columns and 4 rows which are connected to the inputs and outputs of HL5239. Each sensor consists of two metal plates, with one plate connected to one of the rows and the other plate connected to one of columns. Maximum of 28 key plates can be formed by this technology.

HL5239 is a mixed mode IC fabricated by CMOS technology. The signal at the keypad is input to sensor processor by column and row scanner and converted to digital data.

In order to expand the number of the keys, two or more IC can be used in one system. Besides, noise rejection circuit is built-in HL5239 to minimize the interference from outside system.

FEATURES

  • Mixed mode integrated circuit.
  • Low operating current
  • Built-in noise rejection circuit
  • Parameters can be programmed by external microprocessor
  • Keys of keypad are expandable
  • Built-in regulator circuit

ELECTRICAL CHARACTERISTICS (VDD=4.5V, GND=0V, Ta=+25℃)

PARAMETER

CONDITIONS

MIN

TYP

MAX

UNITS
VDD Supply Voltage 3.5 4.5 5.5 V
Standby Current ABLEN = VDD   0.2 10 uA
Operating Current fosc = 500kHz   0.95   mA
Oscillation frequency     500   kHz
Input low voltage       0.8 V
Input high voltage   3.5     V
Output low voltage       0.8 V
Output high voltage   3.5     V

ELECTRICAL CHARACTERISTICS (VDD=3V, GND=0V, Ta=+25℃)

PARAMETER

CONDITIONS

MIN

TYP

MAX

UNITS
VDD Supply Voltage 2.5 3.0 3.6 V
Standby Current ABLEN=VDD   0.2 10 uA
Operating Current fosc=500kHz   0.45   mA
Oscillation Frequency     500   kHz
Input low voltage       0.8 V
Input high voltage   2.4     V
Output low voltage       0.8 V
Output high voltage   2.4     V

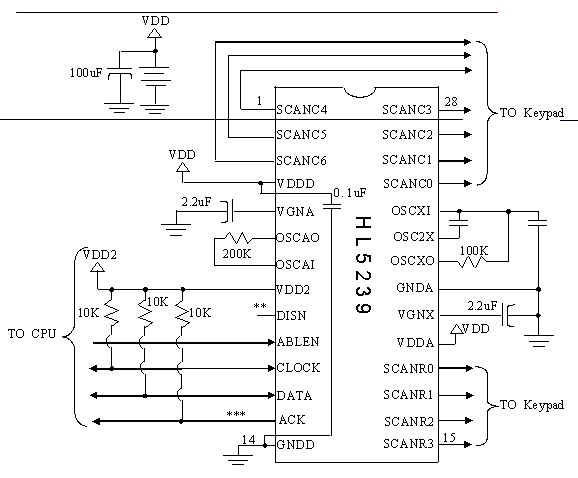

APPLICATION CIRCUIT



Back to top...

HL5239B GENERAL DESCRIPTION

HL5239B is a multiple point object proximity sensor IC, which can be used to determine position of an object in a keypad matrix, and can be called object position detector.

The sensors of the object position detector are composed of multiple arrays of sensor plates. The key matrix is formed by 7 columns and 4 rows which are connected to the inputs and outputs of HL5239B. Each sensor consists of two metal plates, with one plate connected to one of the rows and the other plate connected to one of columns. Maximum of 28 key plates can be formed by this technology.

HL5239B is a mixed mode IC fabricated by CMOS technology. The signal at the keypad is input to sensor processor by column and row scanner and converted to digital data.

In order to expand the number of the keys, two or more IC can be used in one system. Besides, noise rejection circuit is built-in HL5239B to minimize the interference from outside system.

FEATURES

  • Mixed mode integrated circuit
  • Low operating current
  • Built-in noise rejection circuit
  • Parameters can be programmed by external microprocessor
  • Keys of keypad are expandable
  • Built-in regulator circuit

ELECTRICAL CHARACTERISTICS (VDD=4.5V, GND=0V, Ta=+25℃)

PARAMETER

CONDITIONS

MIN

TYP

MAX

UNITS
VDD Supply Voltage 3.3 4.5 5.5 V
Standby Current ABLEN = VDD   0.2 10 uA
Operating Current fosc = 500kHz   0.85   mA
Oscillation frequency     500   kHz
Input low voltage       0.8 V
Input high voltage   3.5     V
Output low voltage       0.8 V
Output high voltage   3.5     V

ELECTRICAL CHARACTERISTICS (VDD=3V, GND=0V, Ta=+25℃)

PARAMETER

CONDITIONS

MIN

TYP

MAX

UNITS
VDD Supply Voltage 2.4 3.0 3.6 V
Standby Current ABLEN=VDD   0.2 10 uA
Operating Current fosc=500kHz   0.33   mA
Oscillation frequency R =   500   kHz
Input low voltage       0.8 V
Input high voltage   2.4     V
Output low voltage Iout     0.8 V
Output high voltage Iout 2.4     V

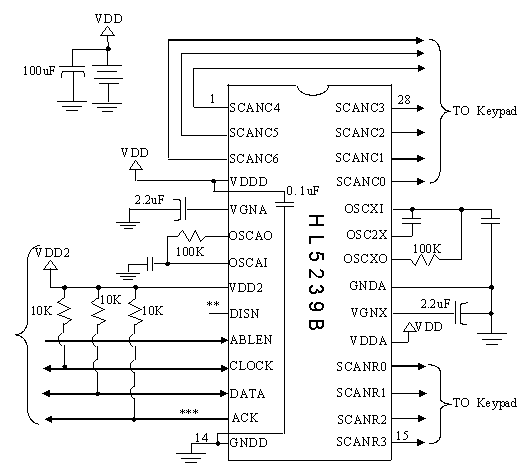

APPLICATION CIRCUIT

Back to top...

HL5239C GENERAL DESCRIPTION

HL5239C is a multiple point object proximity sensor IC, which can be used to determine position of an object in a keypad matrix, and can be called object position detector.

The sensors of the object position detector are composed of multiple arrays of sensor plates. The key matrix is formed by 2 columns and 4 rows which are connected to the inputs and outputs of HL5239C. Each sensor consists of two metal plates, with one plate connected to one of the rows and the other plate connected to one of columns. Maximum of 8 key plates can be formed by this technology.

HL5239C is a mixed mode IC fabricated by CMOS technology. The signal at the keypad is input to sensor processor by column and row scanner and converted to digital data.

In order to expand the number of the keys, two or more IC can be used in one system. Besides, noise rejection circuit is built-in HL5239C to minimize the interference from outside system.

FEATURES

  • Mixed mode integrated circuit
  • Low operating current
  • Built-in noise rejection circuit
  • Parameters can be programmed by external microprocessor
  • Keys of keypad are expandable
  • Built-in regulator circuit.

ELECTRICAL CHARACTERISTICS (VDD=4.5V, GND=0V, Ta=+25℃)

PARAMETER

CONDITIONS

MIN

TYP

MAX

UNITS
VDD Supply Voltage 3.3 4.5 5.5 V
Standby Current ABLEN = VDD   0.2 10 uA
Operating Current fosc = 500kHz   0.85   mA
Oscillation frequency     500   kHz
Input low voltage       0.8 V
Input high voltage   3.5     V
Output low voltage       0.8 V
Output high voltage   3.5     V

ELECTRICAL CHARACTERISTICS (VDD=3V, GND=0V, Ta=+25℃)

PARAMETER

CONDITIONS

MIN

TYP

MAX

UNITS
VDD Supply Voltage 2.4 3.0 3.6 V
Standby Current ABLEN=VDD   0.2 10 uA
Operating Current fosc=500kHz   0.33   mA
Oscillation frequency     500   kHz
Input low voltage       0.8 V
Input high voltage   2.4     V
Output low voltage       0.8 V
Output high voltage   2.4     V

APPLICATION CIRCUIT

Back to top...

HL5239D GENERAL DESCRIPTION

HL5239D is a multiple point object proximity sensor IC, which can be used to determine position of an object in a keypad matrix, and can be called object position detector.

The sensors of the object position detector are composed of multiple arrays of sensor plates. The key matrix is formed by 4 columns and 1 row which are connected to the inputs and outputs of HL5239D. Each sensor consists of two metal plates, with one plate connected to one of the rows and the other plate connected to one of columns. Maximum of 4 key plates can be formed by this technology.

HL5239D is a mixed mode IC fabricated by CMOS technology. The signal at the keypad is input to sensor processor by column and row scanner and converted to digital data.

In order to expand the number of the keys, two or more IC can be used in one system. Besides, noise rejection circuit is built-in HL5239D to minimize the interference from outside system.

FEATURES

  • Mixed mode integrated circuit
  • Low operating current
  • Built-in noise rejection circuit
  • Parameters can be programmed by external microprocessor
  • Keys of keypad are expandable
  • Built-in regulator circuit

ELECTRICAL CHARACTERISTICS (VDD=4.5V, GND=0V, Ta=+25℃)

PARAMETER

CONDITIONS

MIN

TYP

MAX

UNITS
VDD Supply Voltage 3.3 4.5 5.5 V
Standby Current ABLEN = VDD   0.2 10 uA
Operating Current fosc = 500kHz   0.85   mA
Oscillation frequency     500   kHz
Input low voltage       0.8 V
Input high voltage   3.5     V
Output low voltage       0.8 V
Output high voltage   3.5     V

ELECTRICAL CHARACTERISTICS (VDD=3V, GND=0V, Ta=+25℃)

PARAMETER

CONDITIONS

MIN

TYP

MAX

UNITS
VDD Supply Voltage 2.4 3.0 3.6 V
Standby Current ABLEN=VDD   0.2 10 uA
Operating Current fosc=500kHz   0.33   mA
Oscillation frequency     500   kHz
Input low voltage       0.8 V
Input high voltage   2.4     V
Output low voltage       0.8 V
Output high voltage   2.4     V

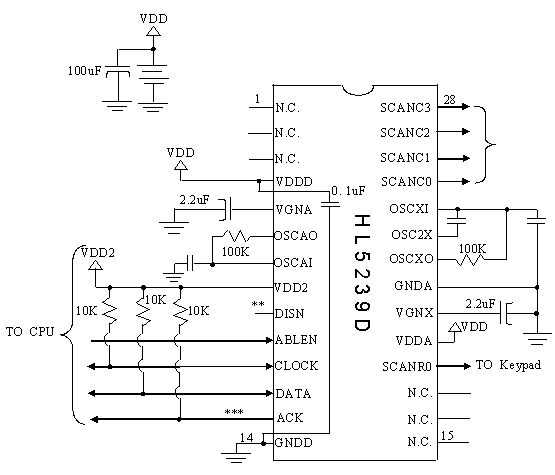

APPLICATION CIRCUIT
