HL8028 (Heart Pulse Detector with Electrocardiogram Sensor)
GENERAL DESCRIPTION
The HL8028 Heart Pulse Detector is a single chip differential-sensing electrocardiogram heart pulse detection system. The preamplifier is built as a differential input instrument amplifier for preprocessing heart pulse signal. There are two amplifiers can be configured as band pass filter and low pass filter for further processing heart pulse signal. The built-in digital processor tracks detected heart pulse signal and provides an additional synchronous pulse signal for compensate lost pulse signal.
FEATURES
- Low operating voltage
- Differential-sensing detection
- Built-in common voltage
- Built-in hands on detection
- Additional synchronous pulse output
ABSOLUTE MAXIMUM RATING
- Supply Voltage (VDD to VSS) ----------------------------------------- 6V
- Input Voltage Range ------------------ (GND - 0.3V) to (VDD + 0.3V)
- Operating Temperature Range --------------------------- 0℃ to +60℃
ELECTRICAL CHARACTERISTICS ( VDD=3V , GND=0V ,Ta=+25℃ , unless otherwise noted )
PARAMETER |
CONDITIONS |
MIN |
TYP |
MAX |
UNITS |
Operating Voltage | Figure | 2.4 | 5 | V | |
Standby Current | HIEN=0V & LOEN=3V | 0.2 | uA | ||
Operating Frequency | at OSC2 | 33K | Hz | ||
Operating Current | Figure | 300 | 500 | 600 | uA |
Input Signal Level | Between A1Ip and A1IN | 1 | mV | ||
OUT1 Pulse Width | Figure at 33KHz | 200 | mS | ||
OUT2 Pulse Width | Figure at 33KHz | 40 | mS | ||
Input low voltage | pin : HIEN , LOEN | 0.8 | V | ||
Input high voltage | pin : HIEN , LOEN | 2.2 | V | ||
Output low voltage | Iout = -0.1mA , pin : OUT1 , OUT2 | 0.5 | V | ||
Output high voltage | Iout = 0.1mA , pin : OUT1 , OUT2 | 2.5 | V |

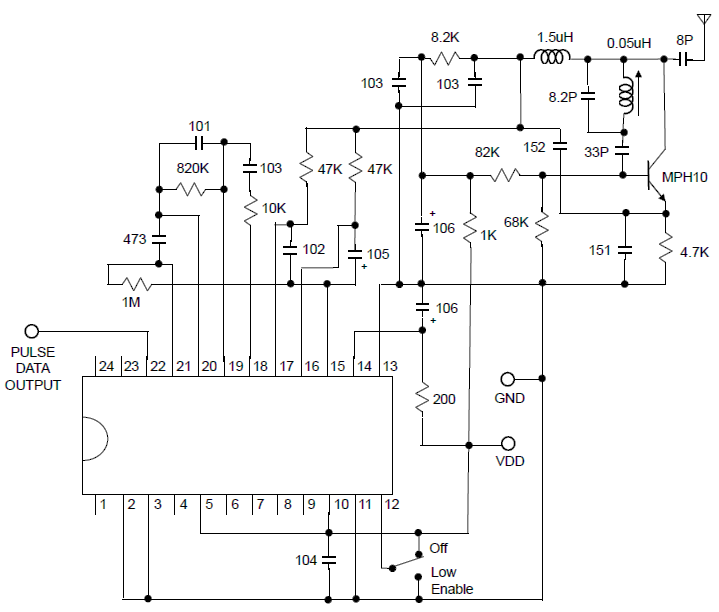

FIGURE: Application Circuit
